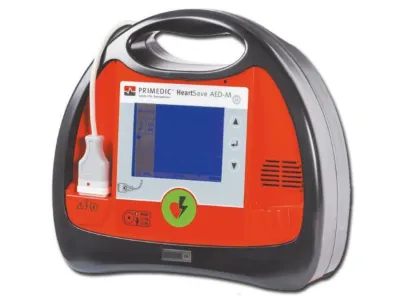

Defibrillyator PRIMEDIC AED-M

Təsvir və xüsusiyyətlər

Technical specifications

• Defibrillation
Semi-automatic mode
Wave: biphasic, current controlled pulse
Energy: 50-360J
Charging time: < 12 sec @ 360J
Operating modes: asynchronous
Paediatric mode

• ECG
Lead: II
Patient’s impedance range: 23-200 Ohm
Heart rate: 30-300 per min

• VF:VT Detection
VF/VT Detection
Analysis time 7-12 sec
Asystole threshold: <0.2mV
Artefact – Pacemaker detection

• Electrodes
Non polarized electrodes, cable length 2 m

• LCD Monitor
95×72 mm (diagonal 4.7″/120 mm)
320×240 (pixel size 0.36×0.36 mm)
Storage battery status display
Speed 25 mm/s
Heart rate, number of defibrillation, number of VF/VT, total resuscitation time

• Data backup
Removable memory
Voice recording

• Power supply
Lithium battery 6 years life or 200 discharges at 200J – 15 hours monitoring

• Status display
Defibrillator and battery status visualization
